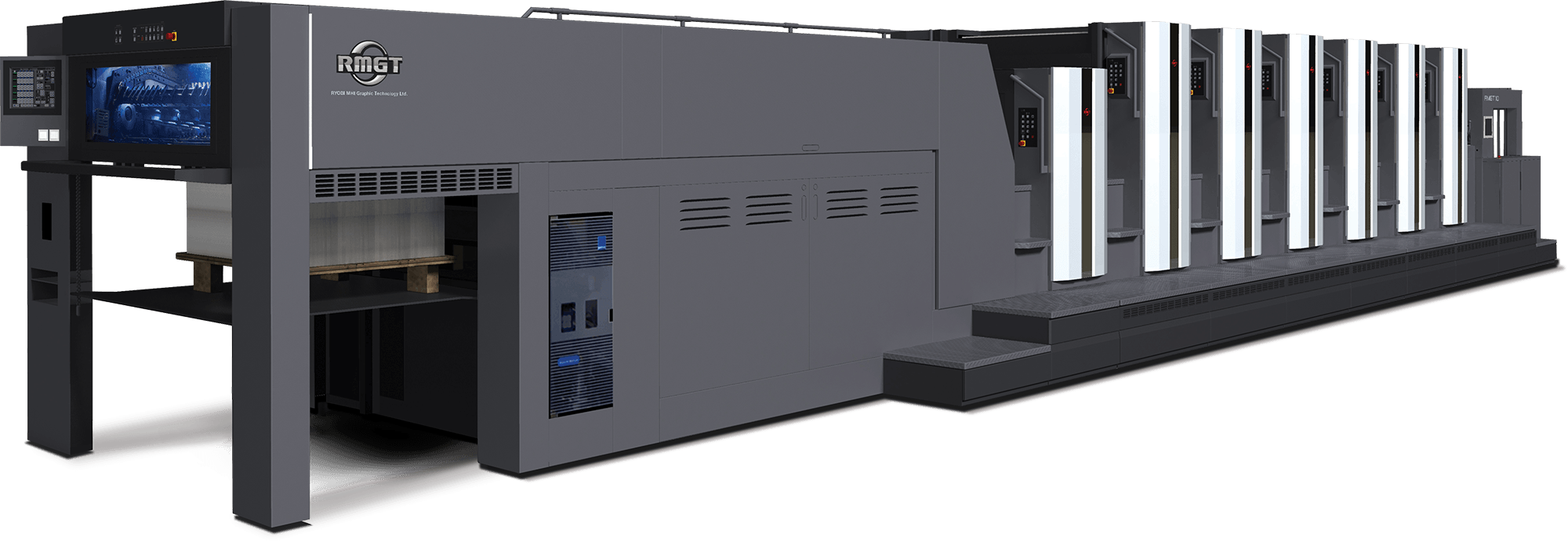

Introducing the RMGT 1060LX Performance Package, a fully loaded press configuration for packaging printers that delivers real-world, measurable productivity improvements to yield more output and better printing performance for your operation.
The Performance Package includes RMGT’s incredible SimulChanger parallel automated plate-changing system that also completes washups at the same time! A new polygon-type vacuum wheel provides a superior vacuum across the entire substrate sheet for unmatched delivery piling performance. Included are improved front-lay and side-lay detectors to accommodate thicker stock up to 1.00 mm.
Fast 17,100 speeds per hour plus Smart Assist Printing™ further drive productivity to even higher levels. Optional high-speed automatic feeder and delivery shutters are available with modest pricing.
| Printing Unit Configurations | 2-12 Units |
|---|---|
| Maximum Sheet Size | 29 1/2" x 41 3/4" |
| Minimum Sheet Size | 14 1/8" x 21 1/4" |
| Sheet Thickness Range | 0.8 - 1.00 and 1.20 mm |
| Maximum Printing Speed | 17,100 IPH |
| Printing Unit | |
|---|---|
| Patented doubling prevention system | |
| Plate clamp with Fan-Out adjustment device | |
| Stainless steel metalized Plate and Blanket cylinder | |
| Chrome plated Impression cylinder | |
| Protection Cover automatic Open/Close device | |
| Bearer Wiper | |
| Automatic Impression Pressure preset with Plate and Blanket cylinders follow-up mechanism | |
| Torsion Bar type gripper shaft | |
| Lubrication-Free grippers bearing | |
| Gripper Pad Casette type | |
| Circumferential, Lateral and Cocking register adjustment remote control | |
| Safety Bar between Plate and Blanket cylinder | |
| Safety Bar between Blanket cylinder and Ink form roller (W) | |
| Safety Bar between Blanket and Impression cylinder | |
| Skeleton type Double Diameter transfer cylinder | |
| Air Shower above Impression cylinder | |
| Air Chamber type sheet guide under transfer cylinder | |
| Gripper Pad Height adjustment device | |
| Skeleton transfer Cylinders Std. | |
| Coater retractable + S - APC plate changers (Optional) | |
| Addition of sheet guide above Impression cylinder | |
| Feeder Section | |
| High speed feeder separator | |
| Paper size preset (Separator Front/Back Positioning by remote control) | |
| Single Suction belt type feeder board with misalignment prevention function | |
| Foreign substance stopper at feeder board | |
| Sheet Feeding speed Slowdown device | |
| Cover Below feeder board with Limit Switch | |
| Separator Height and Front Air Blast Nozzle Positioning by remote control | |
| Expandable paper guide under separator | |
| Fully Automatic Logistic Feeder (Optional) | |
| Electro Static Eliminator | |
| Registration Section | |
| Photo Electric type Double sheet detector | |
| Ultra Sonic type Double sheet detector | |
| Roller type paper retainer | |
| Side Lay preset | |
| Torsion Bar type Swing gripper shaft | |
| Front-Lay Circumferential and Cocking register by remote control | |
| Pneumatic pull side guide | |
| Inking Unit | |
| High Precision Ink Key remote control system (Auto preset Inking system) | |
| Automatic Ink key zero point adjustment system | |
| Variable Ink Doctor timing remote control | |
| Ink Fountain roller rotation remote control | |
| Automatic Ink roller cleaning device with Ink ductor Blade On/Off remote control | |
| Dampening Section | |
| On Touch On/Off nipping of DT and DR rollers | |
| Water fountain roller rotation remote control | |
| Water rider roller (DS) with specialized chrome coating | |
| Water oscillating bridge roller (DB) | |
| Multi-Mode dampening system | |
| Delivery Section | |
| Highspeed package spec. with Polygon wheel in Delivery (STD.) | |
| Delivery drumless cylinder | |
| Torsion bar type shadowless chain gripper Bar | |
| Delivery jam-up detector | |
| Delivery pile thrusting detector | |
| Sheet releasing remote control | |
| Vaccum slowdown wheel with independent drive | |
| Sheet decurler | |
| Automatic lubrication for chain guide | |
| Delivery pile automatic lowering | |
| Paper size preset (Side jogger lateral positioning, Expandable side jogger, vacuum slow down wheel Front/Back position and vacuum slow down wheel suction width presetting) | |
| Delivery Saftey Area detector | |
| Delivery Air guide plate | |
| Electro Static Eliminator | |
| Stack Aligner In delivery | |
| Operation-Control Section | |
| Sequential start-up | |
| Emergency Impression Off at feeder | |
| Emergency Impression Off at delivery | |
| Sequential Impression On | |
| Color touch screen at feeder | |
| Presetting counter with feeder Pump Off function | |
| High speed Impression On Mechanism | |
| Active / Safety mode selector switch (Feeder to each unit) | |
| Color touch screen at delivery | |
| Multi function beam (LED) | |
| RMGT - Intelligent press control | |
| Paper/Plate Size | |
| Paper Thickness Range：0.04～0.8mm 1.00 mm and 1.20 mm. | |
| Plate Thickness：0.3mm | |
| Ink：Oil Based | |
| Op Varnish：Selected (All Printing Units) | |
| Language：English | |
| Safety Regulation：UL | |
| The unit for Distance：mm | |
| Plate punch Dimension: RMGT Standard | |
| Feeder-Registration Section | |
| Front-Lay Bernoulli | |
| Automatic central greasing system for feeder board and register by cartridge | |
| Corrective sheet detector with sheet clamp device | |
| Side-Lay detector | |
| Brush and Rubber roller device (Single Bar type) | |
| Feeder belt acceleration/deceleration device | |
| Printing Unit | |
| Plate Changer :Full FPC, SMX and S-APC | |
| Support bar for blanket change | |
| Automatic Blanket cleaning device | |
| Inking Unit | |
| Ink Clutch：On any two Printing Units (STD) | |
| Ink Fountain roller Independent drive | |
| Ink Oscillating rollers Dead point positioning remote control | |
| Ink Oscillating Roller On/Off remote control | |
| Dampening Section | |
| Dampening Oscillating roller (DR Roller) | |
| Delta type Dampening system | |
| Delivery Section | |
| Cleaning brush for Chain gripper | |
| Board Insertion guide automatic lowering device | |
| Powder Spray (Grafix Megatronic S-Hep) | |
| Long Delivery | |
| Delivery Shutter (Optional) | |
| Operation-Control Section | |
| PPC Server III Software | |
| Press Information EDGE with PQS D-I-R - SAP (Optional) | |
| Press Information Display | |
| Special sheet for UV-Special Unit | |
| Anti Scratching Measure：Grade 1 for Metalized paper, Mirror Coating, Matt Coating, Card paper and Straight Printing | |
| Air Blow under Swing：Selected | |
| UV Printing：UV Provision <= Including Ink Mist Collector, Etc. | |
| Interdeck Provision : Selected (All Printing Units) | |
| Machine Arrangement | |
| Press Raise：450mm | |
| Feeder Band Stand：Addition of Drive side Steps | |
| Delivery Band Stand：Delivery Band Stand_Not Selected (Flip-Up type Pile Extraction)_Selected | |
| Direction of delivery Pile Extraction：Operation side | |
| Others | |
| Tray at Drive side | |
| Cover for Drive side under foot step | |
| Cover for Operation side foot step | |
| Tool Box under Operation side foot step | |
| Power Supply：60Hz 220V without Transformer | |
| X-Rite Interface | |
| 17,100 SPH | |
| UV-Prep at EOP | |
| BW water spray (RMGT) | |
| Auxilliary Equipment | |
| Rollers (Bottcher) | |
| Remote Access Program | |
| H&B Anilox Coater - Aqueous/UV | |
| H&B Spare Anilox roller | |
| AGT Combi Unit | |
| X-Rite Intellitrax Closed Loop Color Spectrophotometer | |
| Air Center Cabinets |
Color Navigator automatically corrects all necessary ink key openings based on the operator's visual color sense using a revolutionary touch screen color wheel.
This simultaneous plate cylinder repositioning system targets the time-consuming plate-changing steps in press makereadies.
IPC III, RMGT’s intelligent automated press control system, is a vital link in the digital chain.
Energy-conserving, long-life LED-UV curing system instantly dries printed sheets using light-emitting diodes.
